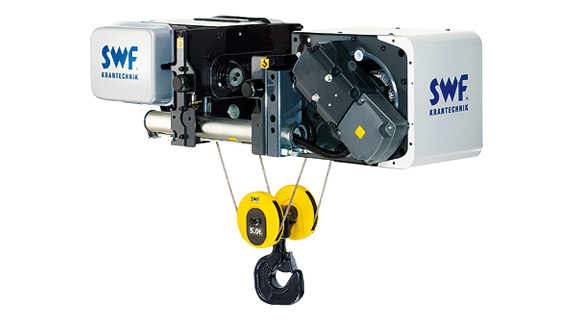

NOVA L single girder trolley, low headroom, up to 12,5 t

Standard equipment:
• 2-speed hoisting motors (6/1)
• Hoist condition monitoring system NovaMaster with Safe Working Period Counter (NOVA NE/NF)
• 4-step hoisting limit switch with slow-down function and phase mismatch protection
• Mechanical overload protection
• Thermal protection for hoisting and travelling motors
• Travelling machinery with frequency inverter, 2-step or stepless
• Standard 3-phase voltages 380/400/415 V 50 Hz; 440/460/480 V 60 Hz
• 48 V contactor control
• IP 55 protection, duty factor 60 %
• Electrical assembly and wiring in accordance with IEC standards

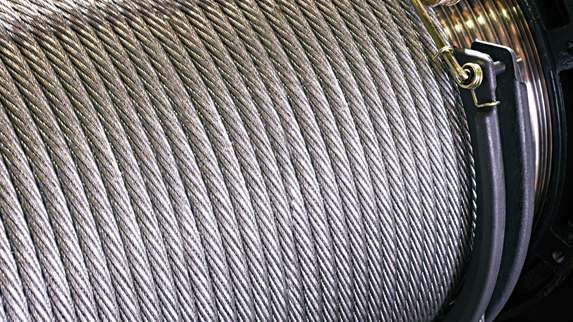

• Robust rope guide made of cast iron
• Epoxy paint, 60 μm

Options:
• IP65 control pendant with plug adapter and Emergency-Stop
• Radio remote control
• Hoist condition monitoring system NovaMaster with Safe Working Period Counter (NOVA NB/NC/ND)
• Load summation for max. 4 hoists with NovaMaster
• Hoisting inverter with ESR
• 2-step trolley travel limit switch
• External fan for hoisting motor
• Standby heating for bridge panels and motors
• Special operating voltage 208 - 690 V 50/60 Hz
• IP66 protection
• Ambient temperature -20°C - +55°C
• Explosion proof version
• Stainless steel hoist panel
• Rain covers
• Articulated trolley for curved track
• Drum brake
• Lockable hook/ramshorn hook
• Cable reel
and much more

Key technical data

• Easy installation thanks to a simple connection system with a low own-weight which is capable of bearing high loads
• Flexible and individually adjustable lightweight crane systems
• Gentle lifting and positioning of loads, manually or with variable electric speed control
• Wide range of profiles available for loads of up to 2,000 kg
• Wide range of power supply modes available
• A wide range of spans can be realized
• We provide monorail tracks as well as single-girder and double-girder solutions
• Compact solutions available for various headrooms
• We also provide customized equipment to suit your individual needs
• Highest quality standard and minimum production tolerances
• Low noise level
• Various installation options with numerous suspension types
• Easy to modify and/or extend
• Prolonged service life combined with low maintenance costs
• Available at a competitive price topped with low running costs
