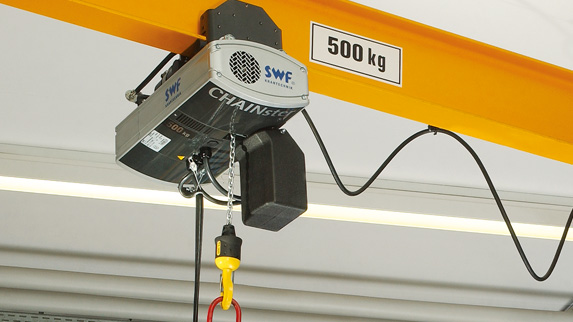

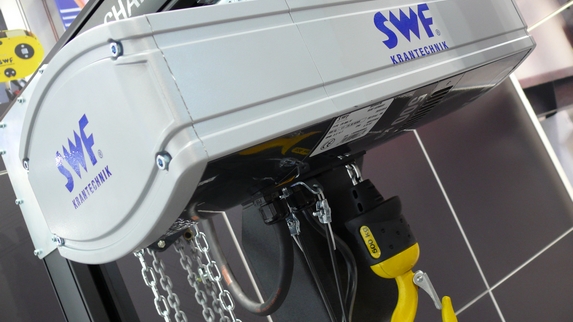

CHAINsterGT electric chain hoists with integrated hoist inverter for loads up to 2,500 kg

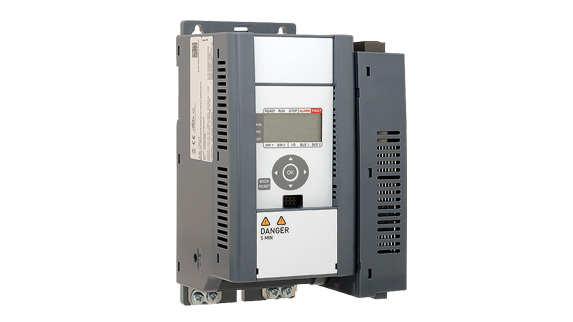

• Integrated frequency inverter technology
The integrated and pre-programmed hoist inverter offers a range of functions and ensures greater operating safety; no extra effort required when starting up (Plug & Play)

• Effective and quick operation

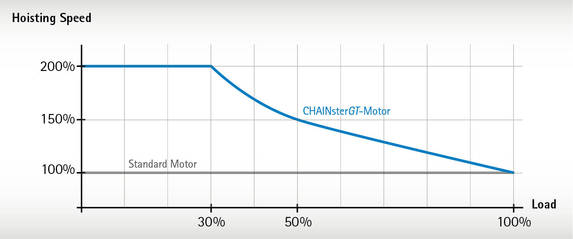

Wide range of speeds with greater hoist speeds at partial load (ESR, e.g. double the hoist speed at a partial load of < 30%) and lower hoist speeds for precise positioning of loads

• Safety and reliability thanks to intelligent hoist monitoring

Electronic monitoring of the slipping clutch, permanent calculation of the safe working period "SWP" (load spectrum recorder), mechanical and electronic overload protection, prevention of shock loads (reduces the impact of sudden shocks)

Advantage: Efficient and cost-effective operation with a maximum of quality

Key technical data

Standard equipment:
• Upper hook
• 2 lifting speeds up to 6/1 ratio depending to load
• Up to 2,500 kg only single fall
• Chain sprocket with intermediate teeth and metal chain guide
• Mechanical overload device
• 2-step upper and lower emergency lifting limit switch
• High-quality reliable contactor control 48 V with main switch
• Electrical connections plugable, for relieved maintenance
• Thermal protection for lifting motor
• Control pendant IP65 with emergency button, with plug
• Lifetime brake
• Separate brake rectifier
• Electrical provision for motor trolley
• Housing made completely from aluminum
• Protection IP55, isolation class H
• Ambient temperature -20 °C up to +50 °C
• Epoxy powder painting, 70 μm

Options:
• Optional push trolley or inverter controlled motor trolley
• Trolley limit switch
• Upper eye suspension instead of hook
• Load chain and hook made from stainless steel
• 2 step gear limit switch
• Second hoisting brake
• Rain cover
• Standby heating for motors and electrics
• Remote radio control „RadioMaster“
• Explosion-proof application
• Power supply from 230V up to 675V, 3 phases
• HandyMaster control pendant for increased efficiency
• Version for food industry
